PRE2 Preamplifier
The PRE2 embodies EMM Lab’s recognition that the analogue preamp at the heart of every music system deserves the very best treatment because it handles every sound your system makes. Built on the heritage of the famous PA6i Meitner preamp, the PRE2-SE updates Ed Meitner's classic to take a place at the forefront of 21st century preamp performance.
PRE2 Preamplifier

PRE2 Preamplifier

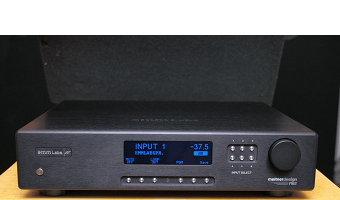

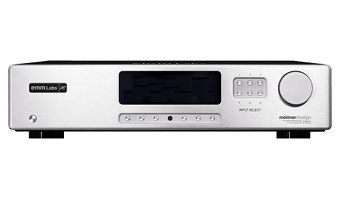

Images of PRE2 Preamplifier

PRE2 Preamplifier

The PRE2 embodies EMM Lab’s recognition that the analogue preamp at the heart of every music system deserves the very best treatment because it handles every sound your system makes. Built on the heritage of the famous PA6i Meitner preamp, the PRE2-SE updates Ed Meitner's classic to take a place at the forefront of 21st century preamp performance.

Eminent recording and mastering engineer Tom Jung explains: "Ed Meitner is the only guy on the planet who has an equally good understanding of both digital and analogue circuitry".

The PRE2 features six analogue inputs, a recording loop, infrared remote control, multichannel ganging and, most importantly, stunning transparency. Due, in no small part, to the extraordinarily sophisticated contactless switching system, discrete circuitry, and the (proprietary) volume control.

Several PRE2s can be daisy-chained via serial control port to provide the purest multichannel preamplifier operations.

The PRE2 also features EMM Lab’s aerospace-grade composite laminate circuit boards. These provide several performance advantages over conventional boards:

  • Copper traces are microscopically smooth on top and bottom, significantly reducing skin effect issues
  • Naturally damped sandwich construction offers superior strength and vibration resistance
  • Lower dielectric losses and superior heat conduction ensure a more uniform temperature gradient across the circuitry, increasing stability and longevity

All of this makes the PRE2 the most sophisticated solid-state analogue preamp ever created. Use it in your audio system and you'll be able to control everything. Except, of course, your enthusiasm.

Key Features

  • Two XLR inputs, four RCA inputs, and one RCA Recording Loop
  • 100% contactless, discrete, signal paths
  • Clean Class-A power to drive cables and loads without degradation
  • Proprietary software-based analog volume control
  • Exclusive composite laminate circuit boards
  • Multifunction infrared remote control
  • Flexible LCD status and control display
  • Serial port for wired remote control
  • Daisy-chain expansion for multi-channel use
  • Aero aluminium machined chassis
  • CE compliant

Power Supply:
Power factor corrected
Factory set to 100V or 115V or 230V, 50/60Hz
Power consumption: max. 40W

Stereo Audio Outputs:
Balanced on XLR
Unbalanced on RCA

Specification

S/N ratio: 110dB (A-weighted)
THD: 1kHz <0.01%; 20kHz <0.01%
Frequency range: 0Hz-100kHz
Gain control range: Better than 62dB
Maximum output level: 21.9Vpp or 7.75Vrms (20 dBu)
Maximum input level: 5.6Vpp or 2Vrms (8.2 dBu)
Input impedance: XLR - 20KΩ, RCA - 10KΩ
Output impedance: XLR - 150Ω, RCA - 75Ω
System gain: +12dB
Stereo analogue outputs: XLR and RCA
Dimensions W x D x H: 435 x 400 x 92mm
Weight: 12kg
