AT1800 AMPLIFIERS
Pure Balance Amplifiers.
The AT1800 is available with 2 to 7 channels with 200W RMS per channel at 8 ohms and 300W RMS at 4 ohms.
AT1800

AT1800

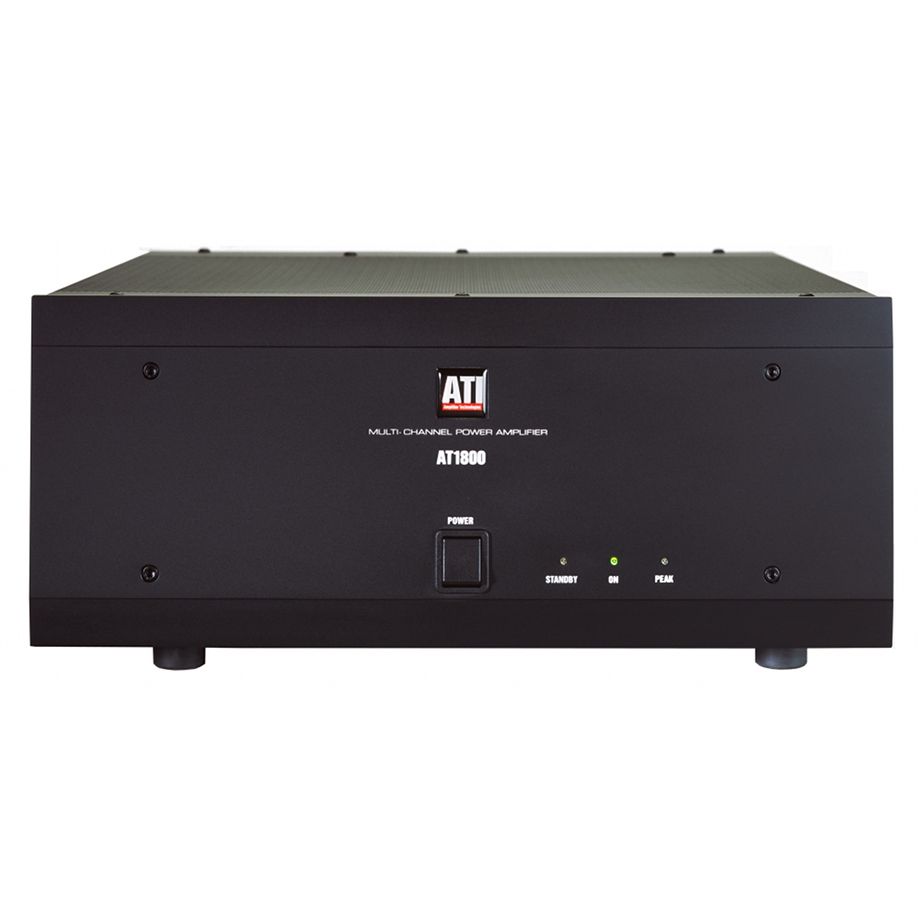

Images of AT1800

The AT1800 shares key hallmarks with its larger siblings, the AT2000 and AT3000’s. The AT1800 is available in 6 configurations from the AT1802 2-channel model to the AT1807 7-channel version. Power is conservatively rated at 180 Watts RMS/channel into 8 Ohms from 20Hz to 20kHz with no more than 0.03% THD and I.M. distortion. Each model comes equipped with two toroidal transformers, a detachable IEC power cord, optically coupled protection circuits, soft-start circuit and convection cooling eliminating the need for fans. Units can even be upgraded at ATI’s factory to add additional channels (up to 7).

Like all other ATI amplifiers, the AT1800-series amps are cooled by large heat sinks, not by cooling fans. This feature may be especially important in this amplifier, which is likely to find use in many home theater systems that do not hide the equipment in a rack or closet.

You can set this amp right next to your favorite listening chair without having to worry about fan noise. An optically-coupled protection circuit automatically shuts down the amplifier in an overload situation, such as when someone accidentally cuts into a speaker cable and shorts out the amp. Once the protection circuit is engaged, it checks the conditions every 10 seconds, and restores output automatically when the overload situation is remedied. The protection circuit is optically coupled to the audio circuit; because there’s no direct electrical connection, the protection doesn’t affect sound quality. A magnetic circuit breaker provides further protection and eliminates the need for cumbersome fuses.

The AT1800-series amps use the same transformer construction as the top-of-the-line AT3000 and AT2000 series amps: MOH cores with bifilar windings, built in ATI’s own factory. It also uses double-sided glass epoxy circuit boards and the same rugged, powder-coated chassis used in all of ATI’s products.

Even the AT1807, with 1,260 total watts, will not trip your household circuit breaker or dim the lights when you switch it on. High power amps draw a momentary—but tremendous— inrush of electrical current when you turn them on. The AT1800-series amps do not, thanks to ATI’s Ultra Soft Turn-On circuit. This circuit gradually powers up the amp, to ease the load on your household circuits. And the amp includes a trigger input that allows it to be turned on and off.

Model Numbers and Channel Configurations:
AT1802 Stereo Amplifier (200W RMS per channel at 8 Ohms)
AT1803 3-channel Amplifier (200W RMS per channel at 8 Ohms)
AT1804 4-channel Amplifier (200W RMS per channel at 8 Ohms)
AT1805 5-channel Amplifier (200W RMS per channel at 8 Ohms)
AT1806 6-channel Amplifier (200W RMS per channel at 8 Ohms)
AT1807 7-channel Amplifier (200W RMS per channel at 8 Ohms)

All ATI AT1800 series amplifiers are covered by ATI’s 7-year transferable warranty and are available in a standard (17”) chassis or a 19” rack-mount version.

About Amplifier Technologies

Amplifier Technologies owns the ATI, Audioaccess, BGW, DATASAT DIGITAL ENTERTAINMENT (DDE) and Theta Digital brands and designs and manufactures state-of-the-art audio components for its own and other brands in its facility in Montebello, CA. Guided by legendary amplifier designer Morris Kessler, ATI offers both performance and value in audio components.
